Recogniform Book Scanning Solutions

Recogniform Book Scanning Solution

Today, at two years after the laucnh fo out innovative solution Recogniform Book Scanner, thanks to a partnership with Fujitsu, we are able to propose exclusive Recogniform Book Scanning Solution, the bundle hardware + software that represent the ideal solution for user professional, occasionaly or consumer which, also with a limited budget do not want to compromise on quality for the dematerialisation of books, magazines, catalogs and any set of pages bound that can not be inserted individually into a scanner with ADF.

Recogniform Book Scanning Solution is a bundle constituted by the new divice of acquisition Fujitsu SV600, from its proprietary driver, from the scanning software to supplied, and a FULL license of Recogniform Image Processor, the professional software solution for conversion / processing of batches images. Are included a license of Adobe Acrobat Standard, a OCR packet for individually using and a specific utility for the management of the business cards.

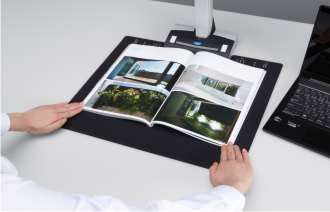

The hardware is equipped with Technology VI, that lens combines a high depth of field with wide area autofocus, a linear CCD image sensor and a highly directional LED light, able to provide optimum brightness without environmental interference, minimizing irregularities in image quality and generating clear and smooth images even when scanning at a distance.

When you scan report of bound books and the all-in-one scans, fixes and scans by detecting when you turn the page and automatically recognizing the orientation. The digitized books can be read by paging through them - just as it does to read a book, a manual or printed text.
Recogniform Book Scanning Solution
Scanning is started at the touch of a button at the base of the scanner and can continue to scan multiple pages automatically in timed mode is defining the time interval, either by automatically detecting when the page is turned.
Recogniform Book Scanning Solution

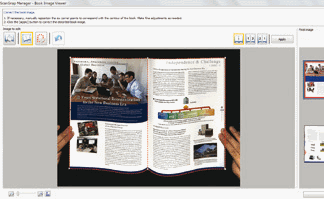

In case of acquisition of facing pages (open book or magazine), the software automatically provides the splitting of the individual pages and also make the same correction of the distortion caused by the curvature of the book.

Thanks to a comfortable window preview, the captured images can be verified and optimized by the operator, which can also make the removal of the fingers that are possibly been used to hold open the book.

When the acquisition is completed, using the Image Processor can be processed even batches of images, to perform automatic quality control, cleaning, deskew, deleting border, resampling, format conversion, etc ...
Recogniform Book Scanning Solution

Book Image Correction: Allows you to easily correct distortion of document.
Recogniform Book Scanning Solution
Recogniform Book Scanning Solution

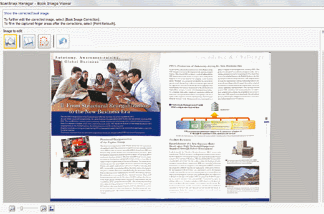

User interaction retouch: If the book was kept in place with your fingers, you can delete the images of the fingers from the scan
Specifications component acquisition
  • Type of scanner system: moving head, simplex scans
  • Capture Modes: Color, gray-scale, monochrome, automatic (detection color / gray-scale / monochrome)
  • Scan Technology: Optical lens with reducing / Color CCD x 1
  • Light Source: White LED + illumination lens x2
  • Scan Resolution: Up to 600 dpi
  • Optical Resolution: Horizontal scanning: 285-218 dpi / Vertical scanning: 283-152 dpi (depending on the scan)
  • Scan speed: 3 seconds / page
  • Dimensions: Automatically recognizes document size, A3 (horizontal), A4, A5, A6, B4, B5, B6, postcard, business card, double letter (horizontal), letter, legal (horizontal) and custom sizes (max: 432 x 300 mm, Min: 25.4 x 25.4 mm)
  • Depth documents 30 mm or less
  • Start Scan: manual using "Scan" button, automatic interval timer, with automatic detection of the page turn.
  • Interface: USB2.0 / USB1.1 (connector: type B)
  • Deskew image processing functions of text on the document / Automatic size detection, image rotation / auto automatic color detection, image enhancement, book / detection multiple documents
  • Supply CA 100 - 240V, 50 / 60Hz
  • Power consumption Operating: 20W or less / In Sleep mode: 2.6 W or less / Standby: 0.4 W or less
  • Operating Environment Temperature: 5-35 ° C / 20-80% relative humidity (non-condensing)
  • Dimension (L x P x A) / Weight device 210 x 156 x 383 mm / 3,0 kg
  • Environmental Compliance ENERGY STAR® / RoHS / Ecodesign
  • Driver: Scpecific Driver (not support TWAIN / ISIS™)
  • Compatibility Windows® 8, 7, Vista and XP.
Specifications component batch processing images
Visit the web page of Recogniform Image Processor

To more information about Recogniform Book Scanning Solution and our solution for data capture, you can send us a email to or fill the below form.

First Name
Last Name
Zip Code

Taking note of Information of the policy of personal data (D. Lgs 30 june 2003 n.196 and subsequent amendment and additions), click on the "OK" button i consent to collect, hold, process, communicate, and if appropriate, discontinue the treatment/s of personal data that concern me, for the purposes specified in the policy.

  • Recogniform Book Scanning Solution - Purchase

    Recogniform Book Scanning Solution

    € 1,290,00 + VAT
    Offers € 990, 00 + VAT
